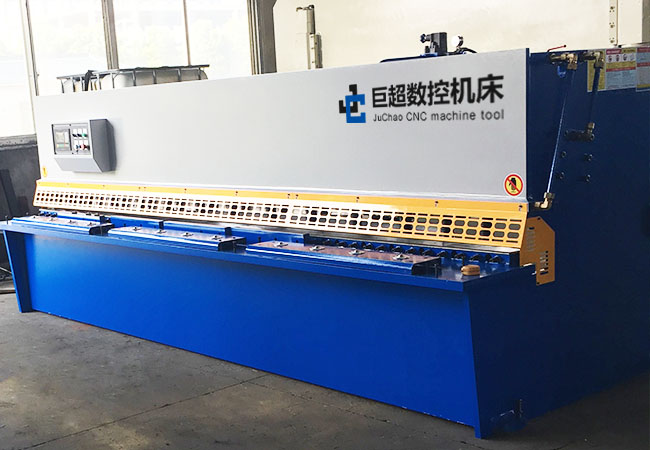

QC12Y-6*4000 液壓擺式剪板機
采用鋼板焊接結構，液壓傳動，氮氣缸回程，操作方便，性能可靠，外形美觀；
刃口間隙調整有指示牌指示，調整輕便迅速；
設有燈光對線照明裝置，并能無極調節上刀架的行程量；
工作區采用柵欄式人身安全保護裝置；
后擋料尺寸及剪切次數有數字顯示裝置。
聯系我們7*24小時咨詢熱線：13912409682
|
規格型號 |
可剪板厚 mm |
可剪板寬 mm |
行程次數 min-1 |
后擋料范圍 mm |
剪切角 |
喉口深度 mm |
主電機功率 kw |
外形尺寸 mm(L×W×H) |
|
QC12Y-4×2500 |
4 |
2500 |
25-45 |
600 |
0.5-1.5 |
100 |
5.5 |
3000×2000×1850 |
|
QC12Y-6×2500 |
6 |
2500 |
20-45 |
600 |
0.5-1.5 |
125 |
7.5 |
3030×2075×1920 |
|
QC12Y-6×3200 |
6 |
3200 |
16-45 |
600 |
0.5-1.5 |
125 |
7.5 |
3730×2075×1970 |
|
QC12Y-6×4000 |
6 |
4000 |
14-45 |
600 |
0.5-1.5 |
125 |
7.5 |
4530×2075×2080 |
|
QC12Y-6×5000 |
6 |
5000 |
11-40 |
800 |
0.5-1.5 |
125 |
7.5 |
5530×2075×2210 |
|
QC12Y-6×6000 |
6 |
6000 |
9-36 |
800 |
0.5-1.5 |
125 |
11 |
6530×2075×2520 |
|
QC12Y-7×7000 |
7 |
7000 |
7-28 |
800 |
0.5-1.5 |
125 |
11 |
7530×2075×2830 |
|
QC12Y-8×2500 |
8 |
2500 |
20-45 |
600 |
0.5-1.5 |
125 |
11 |
3040×2075×1920 |
|
QC12Y-8×3200 |
8 |
3200 |
16-45 |
600 |
0.5-1.5 |
125 |
11 |
3740×2075×1920 |
|
QC12Y-12×2500 |
12 |
2500 |
12-35 |
800 |
0.5-2 |
125 |
15 |
3110×2575×2210 |
|
QC12Y-12×3200 |
12 |
3200 |
7-35 |
800 |
0.5-2 |
125 |
15 |
3810×2575×2420 |
|
QC12Y-12×4000 |
12 |
4000 |
8-35 |
800 |
0.5-2 |
125 |
15 |
4610×2575×2530 |
|
QC12Y-16×2500 |
16 |
2500 |
16-40 |
800 |
0.5-2.5 |
125 |
22 |
3130×2655×2200 |
|
QC12Y-16×4000 |
16 |
4000 |
12-40 |
800 |
0.5-2.5 |
125 |
22 |
4630×2655×2570 |
|
QC12Y-20×2500 |
20 |
2500 |
16-40 |
800 |
0.5-2.5 |
125 |
30 |
3160×2855×2300 |
|
QC12Y-20×4000 |
20 |
4000 |
12-40 |
800 |
0.5-2.5 |
125 |
30 |
4660×2855×2720 |
|
QC12Y-25×2500 |
25 |
2500 |
8-15 |
800 |
0.5-3.5 |
120 |
37 |
3330×2000×2650 |
|
QC12Y-25×3200 |
25 |
3200 |
8-15 |
800 |
0.5-3.5 |
120 |
37 |
3970×2100×2865 |
|
QC12Y-25×4000 |
25 |
4000 |
6-12 |
1000 |
0.5-3.5 |
120 |
37 |
4780×2500×3150 |
|
QC12Y-32×2500 |
32 |
2500 |
6-12 |
1000 |
0.5-3.5 |
120 |
45 |
4100×2300×3200 |
|
QC12Y-32×3200 |
32 |
3200 |
8-12 |
1000 |
0.5-3.5 |
120 |
55 |
1900×2650×3450 |
|
QC12Y-40×2500 |
40 |
2500 |
4-10 |
1000 |
0.5-3.5 |
120 |
75 |
4100×2550×3500 |
|
QC12Y-40×3200 |
40 |
3200 |
4-10 |
1000 |
0.5-3.5 |
120 |
75 |
4900×2900×3750 |
